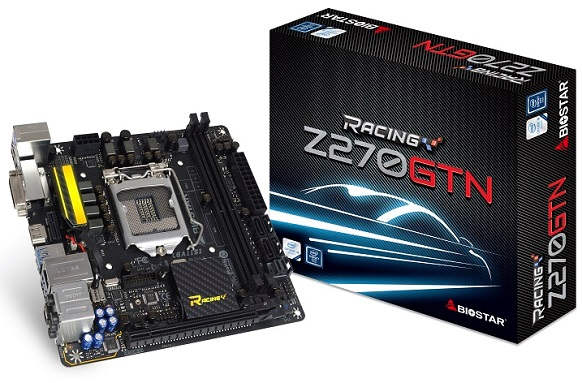

طوفان جدید Biostar با مادربردهای RACING GTN

مدل

RACING Z270GTN

RACING B250GTN

پردازنده پشتیبانی شده

Socket 1151 for Intel® Core i7 / i5 / i3 / Pentium / Celeron processor

Maximum CPU TDP (Thermal Design Power): 95Watt

* Please refer to www.biostar.com.tw for CPU support list.

چیپست

INTEL® Z270

INTEL® B250

حافظه رم

Supports Dual Channel DDR4 1866/2133/2400/3200(OC)

Supports Dual Channel DDR4 1866/2133/2400

2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory

Each DIMM supports non-ECC 4/8/16GB DDR4 module

* DDR4-2400 for 7th Generation Intel® Core™ Processor Family.

* Please refer to www.biostar.com.tw for Memory support list.

حافظه ذخیره سازی

4x SATA III (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology

1x M.2 – Key M (32Gb/s) : Supports PCI-E / SATA SSD & Intel® Optane Technology

1x U.2 (32Gb/s) : Supports Intel® Optane Technology

4x SATA III (6Gb/s) : Supports AHCI

1x M.2 (32Gb/s) : Key M – Supports PCI-E & SATA SSD

1x U.2 (32Gb/s) : Supports Intel® Optane Technology

LAN

Intel i219V

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

بخش صدا

ALC892

7.1 Channels, High Definition Audio, Hi-Fi(Front)

USB

6x USB 3.0 port (4 on rear I/Os and 2 via internal headers)

4x USB 2.0 port (2 on rear I/Os and 2 via internal headers)

اسلات توسعه

1x PCIe 3.0 x16 Slot

پنل ورودی/خروجی

1x PS/2 Mouse / Keyboard

1x DVI-D Port

1x HDMI Port

4x USB 3.0 Port

2x USB 2.0 Port

1x LAN Port

5x Audio Jack

1x S/PDIF Out Port

هدر و رابط ها

4x SATA III Connector (6Gb/s)

1x U.2 Connector (32Gb/s)

1x M.2 – Key E Slot : Supports 2230 Wi-Fi

1x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1x USB 3.0 Header (each header supports 2 USB 3.0 ports)

1x 8-Pin Power Connector

1x 24-Pin Power Connector

1x CPU Fan Connector

1x System Fan Connector

1x Front Panel Header

1x Front Audio Header1x Clear CMOS Header

2x 5050 LED Header
